For model Radiolette (Fret and Foot) 39A Ch= 39, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1C6 1C4 1K6 1D4
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s); Reflex
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details

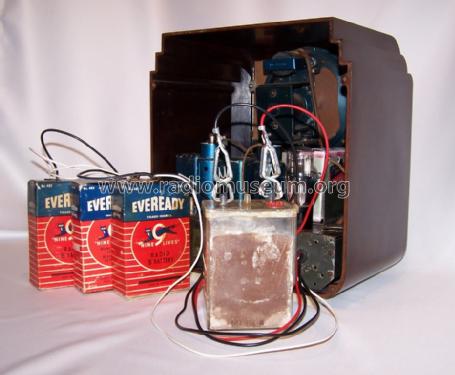

Power type and voltage Storage and/or dry batteries / 120 & 2 & -1.5 & -4.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Radiolette 39A Ch= 39 - Amalgamated Wireless
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 308 x 337 x 225 mm / 12.1 x 13.3 x 8.9 inch
Notes

AWA produced a series of Bakelite, Fret and Foot radios in 1936 and 1937.

Radiolette models R33, R33A, R35, R35A, R38A, R38B, R38C, R39A, R39B, R39C, R40A, R40B and R40C.

The Model 39A was produced in Walnut Redelec with contrasting grained Ivory fret and feet.

Fret and Foot was not the official AWA name for the classic Fisk Tombstone Radiolette but they are unique with a cabinet of a square block of Bakelite along Art Deco lines with curved edges which are complemented by a contrasting colour, Asian influenced speaker grill fret and Lion’s paws as feet.

The unique design is a tribute to the Bakelite designer’s art of the era which made them very appealing to worldwide collectors

They are now known colloquially as the AWA Radiolette, Fret and Foot series of radios.

Price in first year of sale 20.00 Aus£

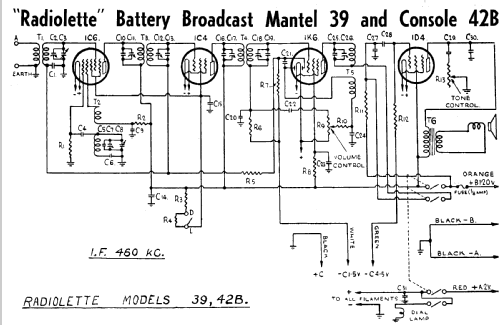

Circuit diagram reference Australian Official Radio Service Manual Vol. I
Mentioned in AORSM vol.1 206
Literature/Schematics (1) "AWA Radiolettes 1932-1949"
Literature/Schematics (2) Radio Trade Annual of Australia (1939 Page 296)

Model page created by Stuart Irwin. See "Data change" for further contributors.
