Radiolette (Fret and Foot) 40A Ch =40

Radiolette 40A Ch =40; Amalgamated Wireless (ID = 691786) Radio

Radiolette 40A Ch =40; Amalgamated Wireless (ID = 691787) Radio
Use red slider bar for more.
Radiolette 40A Ch =40; Amalgamated Wireless (ID = 691786) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A7 6D6 6B7 43
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s); Reflex
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Radiolette 40A Ch =40 - Amalgamated Wireless
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 308 x 337 x 225 mm / 12.1 x 13.3 x 8.9 inch
Notes

AWA produced a series of Bakelite, Fret and Foot radios in 1936 and 1937.

Radiolette models R33, R33A, R35, R35A, R38A, R38B, R38C, R39A, R39B, R39C, R40A, R40B and R40C.

The Model 40A was produced in Walnut Redelec with contrasting grained Ivory fret and feet.

Same chassis as the Bandmaster model 547DD

Fret and Foot was not the official AWA name for the classic Fisk Tombstone Radiolette but they are unique with a cabinet of a square block of Bakelite along Art Deco lines with curved edges which are complemented by a contrasting colour, Asian influenced speaker grill fret and Lion’s paws as feet.

The unique design is a tribute to the Bakelite designer’s art of the era which made them very appealing to worldwide collectors

They are now known colloquially as the AWA Radiolette, Fret and Foot series of radios



Price in first year of sale 21.00 Aus£

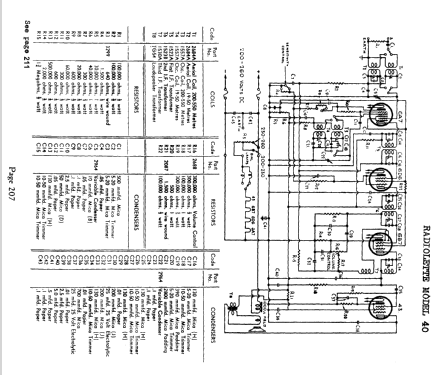

Circuit diagram reference Australian Official Radio Service Manual Vol. I
Mentioned in HRSA AWA Radiolettes 1932-1949

Model page created by Stuart Irwin. See "Data change" for further contributors.
