• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 184300

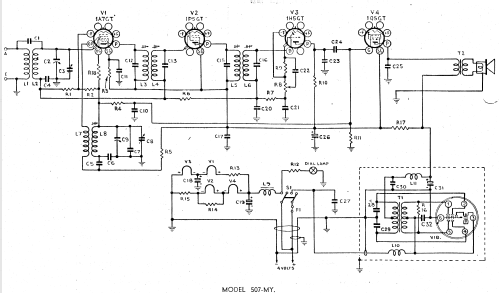

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1A7GT 1P5GT 1H5GT 1Q5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 4 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.25 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

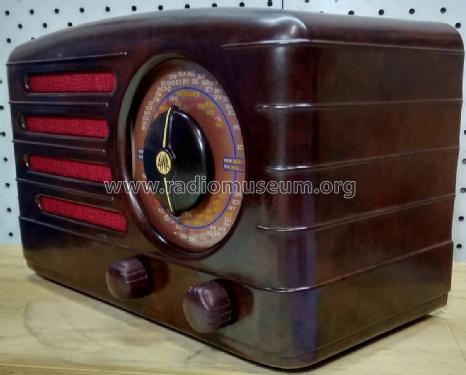

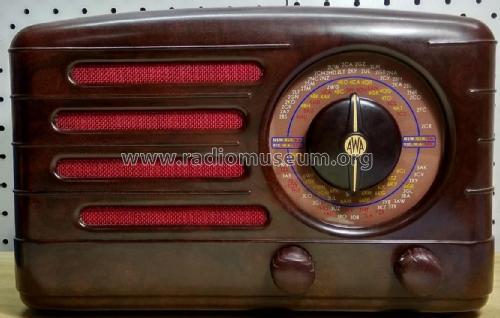

• Model: Radiolette 507MY - Amalgamated Wireless

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 290 x 188 x 165 mm / 11.4 x 7.4 x 6.5 inch

• Notes

• This model uses a synchronous vibrator and is powered from a specially made 4 Volt accumulator.

  Cabinet:
  Moulded Cabinet Colours, Ivory, Jade Green and Walnut.
  Same cabinet design as the Radiolette Model 500M.


• Circuit diagram reference
• Australian Official Radio Service Manual Vol. VI

• Literature/Schematics (1)
• Mingay's Radio Diagram & I.F. Index

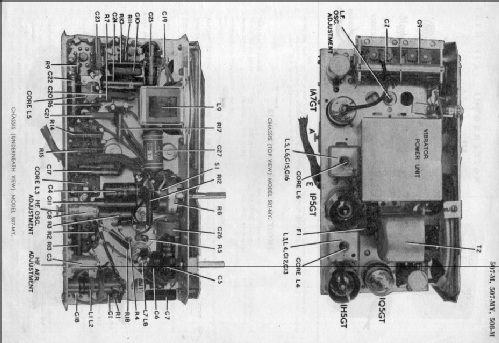

AWA Radiolette Technical Information & service Data 507-M, 507-MY & 508-M
