Radiolette 110 Ch= C104

Radiolette 110 Ch= C104; Amalgamated Wireless (ID = 454853) Radio Radiolette 110 Ch= C104; Amalgamated Wireless (ID = 454859) Radio
Radiolette 110 Ch= C104; Amalgamated Wireless (ID = 454858) Radio Radiolette 110 Ch= C104; Amalgamated Wireless (ID = 161562) Radio
Radiolette 110 Ch= C104; Amalgamated Wireless (ID = 454850) Radio Radiolette 110 Ch= C104; Amalgamated Wireless (ID = 454851) Radio
Radiolette 110 Ch= C104; Amalgamated Wireless (ID = 454852) Radio Radiolette 110 Ch= C104; Amalgamated Wireless (ID = 454854) Radio
Radiolette 110 Ch= C104; Amalgamated Wireless (ID = 454855) Radio Radiolette 110 Ch= C104; Amalgamated Wireless (ID = 454857) Radio
Use red slider bar for more.
Radiolette 110 Ch= C104; Amalgamated Wireless (ID = 454853) Radio
Amalgamated Wireless: Radiolette 110 Ch= C104 [Radio] ID = 454853 800x600

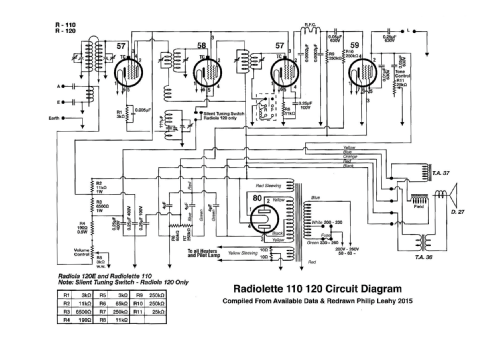

Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiolette 110 Ch= C104, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 57 58 57 59 80
Main principle Superheterodyne (common); ZF/IF 175 kHz; 1 AF stage(s); Anode bend detection
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-230; 230-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 7 inch = 17.8 cm
Power out
from Radiomuseum.org Model: Radiolette 110 Ch= C104 - Amalgamated Wireless
Material Bakelite case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Notes

This radio used an autodyne (self-oscillating) frequency changer.

Chassis was also used in the AWA Radiola 120 and the AGE 50E.

Price in first year of sale 23.00 Aus£
Mentioned in HRSA AWA Radiolettes 1932-1949 Edition 3, Page15.

Model page created by Peter Hughes. See "Data change" for further contributors.
