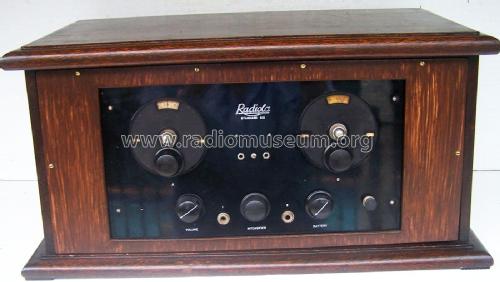

Radiola Standard Six (6) C38 model 1927

Radiola Standard Six C38; Amalgamated Wireless (ID = 1925744) Radio Radiola Standard Six C38; Amalgamated Wireless (ID = 2231094) Radio
Use red slider bar for more.
Radiola Standard Six C38; Amalgamated Wireless (ID = 1925744) Radio
Amalgamated Wireless: Radiola Standard Six C38 [Radio] ID = 1925744 839x1417
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola Standard Six (6) C38 model 1927, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
thanks to Mr Gary Cowans

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UX199 UX199 UX199 UX199 UX199 UX199
Main principle Super-Heterodyne (Super in general); ZF/IF 50 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Radiola Standard Six C38 [model 1927] - Amalgamated Wireless
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

Exists as two different versions:

  • Model 1927: Emmco dials & tunning capacitors. No “Brach-Stats*” fitted, only one terminal panel, six UX199 valves.
  • Model 1928: AWA dials & tunning capacitors. “Brach-Stats*” fitted, two terminal panels, four UX199 & two DEP410 valves.

*Brach-Stats for automatic filament control. Brach-Stats possess the unique property of automatically changing resistance with a varying “A” battery voltage. Thereby eliminating the need for hand rheostats and simplifying the operation of the radio. They are connected in series with the valve filaments. They protect the valves and lengthen their life many times. One Brach-Stat (according to type) can control any number of valves. Brach-stats are furnished on standard mountings in types to suit every valve, and are as easy to interchange as a fuse. From AWA Radio Guide, page 108. Other names: "Barretter tube", "Current regulator tube".

Price in first year of sale 45.00 AUS £
Mentioned in -- Original prospect or advert (HRSA Radio Waves #40 April 1992, Page 16.)
Literature/Schematics (1) - - Manufacturers Literature (AWA Radio Guide 1927, page 45.)

Model page created by Peter Hughes. See "Data change" for further contributors.
