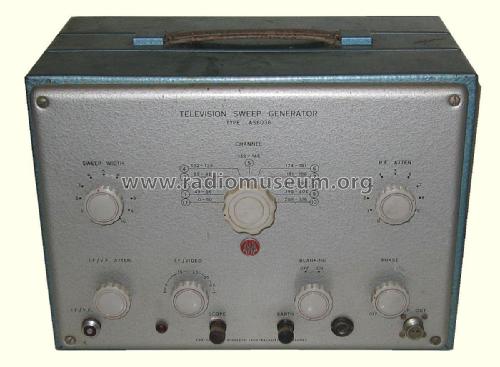

Television Sweep Generator A56036
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1956 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 289829
- Number of Tubes
- 6
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Television Sweep Generator A56036 - Amalgamated Wireless
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 349 x 265 x 230 mm / 13.7 x 10.4 x 9.1 inch
- Notes
-
This is a sweep generator for television alignment. It covers the 10 standard VHF television channels used in Australia at the time, as well as video and I.F. frequencies (0 to 50 MHz).
This instrument has similarities to the RCA model WR-59B but designed for Australian standards.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
