Transmission Measuring set A220 4A94730

Transmission Measuring set A220 4A94730; Amalgamated Wireless (ID = 2022048) Equipment
Transmission Measuring set A220 4A94730; Amalgamated Wireless (ID = 2022699) Equipment Transmission Measuring set A220 4A94730; Amalgamated Wireless (ID = 2022700) Equipment
Transmission Measuring set A220 4A94730; Amalgamated Wireless (ID = 2022701) Equipment
Use red slider bar for more.
Transmission Measuring set A220 4A94730; Amalgamated Wireless (ID = 2022699) Equipment
Amalgamated Wireless: Transmission Measuring set A220 4A94730 [Equipment] ID = 2022699 1400x783
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transmission Measuring set A220 4A94730, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1972 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 62: 2N3694 2N3694 2N3694 2N3694 2N3694 2N3694 2N3694 AY8115 2N3053 2N3053 2N3643 MPS6518 MPS6518 2N2614 2N2614 2N2614 2N2614 2N4249 2N4249 2N4249 2N4249 2N5322 2N5322 2N4250 2N3565 2N3565 2N3565 2N3565 2N3565 2N3565 2N3565 2N3565 2N3565 2N3565 2N1309 2N1309 2N1308 2N1308 2N3638 2N3638 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121 2N4121
Details
Power type and voltage Line plus power jack, mostly with battery or storage battery / AC 100-140; 200-280 / DC 22-53 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Transmission Measuring set A220 4A94730 - Amalgamated Wireless
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Notes

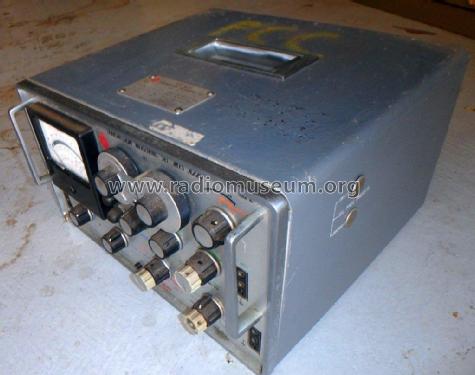

The AWA Transmission Measuring Set A220, Type 4A94730 is an accurate and highly stable portable instrument for the evaluation of a voice frequency telephone channel and FDM systems.

It incorporates a level generator, wide band level meter, high impedance millivolt meter, telephone psophometer, amplitude modulation monitor, selective level meter and wave analyser.

It can be powered by -50VDC, a in-built 12V battery or AC mains power.

Mentioned in - - Manufacturers Literature

Model page created by Gary Cowans. See "Data change" for further contributors.
