• Country
• Argentina

• Manufacturer / Brand
• Ambassador Radio Argentina; Buenos Aires

• Year
• 1940 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 323562

• Number of Tubes
• 8

• Valves / Tubes
• 6D8G 6SK7 6SQ7 43 6E5 25L6GT 25L6GT 25Z6GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Record Player (not changer)

• Power type and voltage
• AC/DC-set / 220 Volt

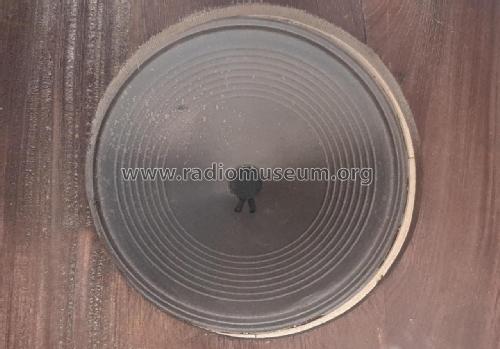

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 27 cm = 10.6 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 87 F - Ambassador Radio Argentina;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 910 x 680 x 410 mm / 35.8 x 26.8 x 16.1 inch

• Notes

• BC: 530-1500 kHz, SW: 5.6-16 MHz

  Push-pull audio output.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Author
• Model page created by Julio Alberto Sanz-Litardi. See "Data change" for further contributors.
