Ambassador All Transistor

Ambassador All Transistor ; Ambassador Allied (ID = 1464476) Radio Ambassador All Transistor ; Ambassador Allied (ID = 1464477) Radio
Ambassador All Transistor ; Ambassador Allied (ID = 1464478) Radio Ambassador All Transistor ; Ambassador Allied (ID = 1464479) Radio
Ambassador All Transistor ; Ambassador Allied (ID = 1464480) Radio
Use red slider bar for more.
Ambassador All Transistor ; Ambassador Allied (ID = 1464476) Radio
Ambassador Allied: Ambassador All Transistor [Radio] ID = 1464476 933x720
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ambassador All Transistor, Ambassador (Allied Stores Purchasing); New York, NY:
By Courtesy Of EBAY User: aboauto

Country:  United States of America (USA)
Manufacturer / Brand:  Ambassador (Allied Stores Purchasing); New York, NY
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: 2N194 2N233 SYL1253 2N306
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Ambassador All Transistor - Ambassador Allied Stores
Material Special material, described in the notes.
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 140 x 70 mm / 7.1 x 5.5 x 2.8 inch
Notes

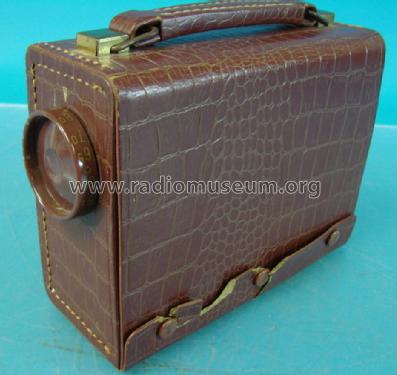

Ambassador Transistor portable radio built into full leather case with handle, Made in U.S.A. Similar to several models listed under Jewel All Transistor Ch= D6-8

Net weight (2.2 lb = 1 kg) 0.890 kg / 1 lb 15.4 oz (1.96 lb)
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.157 settembre-ottobre 2020 pag. 38-41.)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
