- Country
- United States of America (USA)
- Manufacturer / Brand
- United American Bosch (Magneto Corporation); Springfield (MA)
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 18297
-
- alternative name: American Bosch Magneto
- Brand: Essex

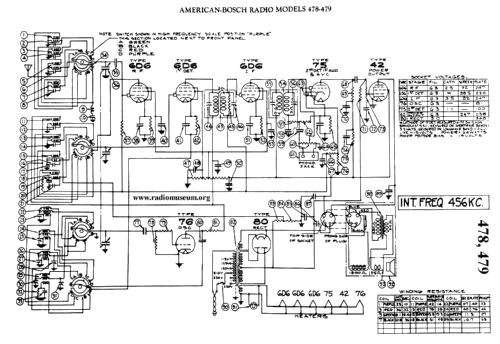

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Power type and voltage
- Alternating Current supply (AC)
- from Radiomuseum.org
- Model: 479 - United American Bosch Magneto
- Notes
- Ch=478
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
