• Country
• United States of America (USA)

• Manufacturer / Brand
• United American Bosch (Magneto Corporation); Springfield (MA)

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18305

• • alternative name: American Bosch Magneto
  • Brand: Essex

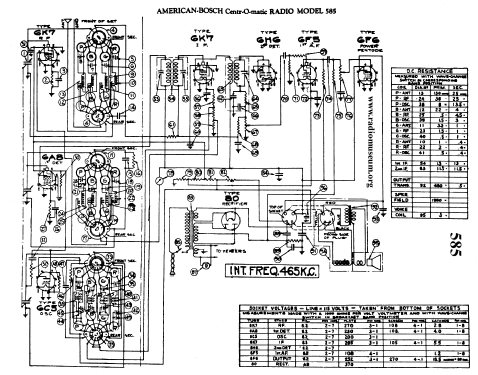

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

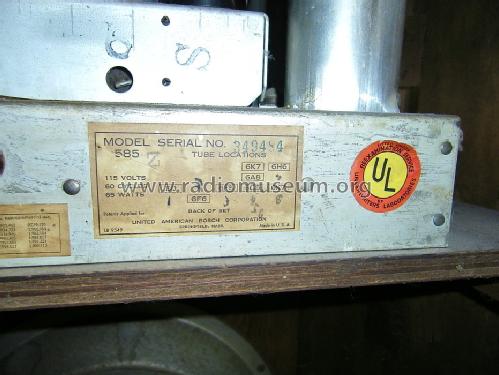

• Valves / Tubes
• 6K7 6A8 6C5 6K7 6H6 6F5 6F6 80

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

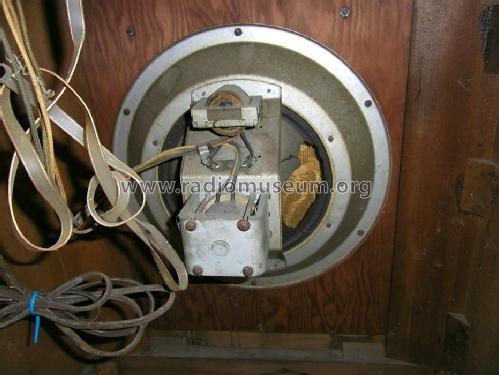

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

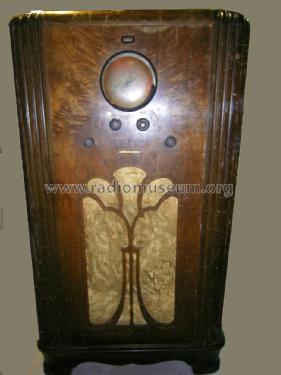

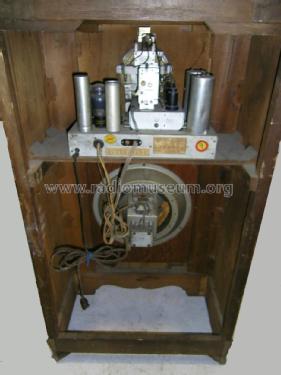

• Model: 585 Z - United American Bosch Magneto

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 23 x 42 x 13 inch / 584 x 1067 x 330 mm

• Notes

• Power Consumption 60 Watts.

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Literature/Schematics (1)
• Rider's Perpetual, Volume 6 = 1935 and before
