Amplifier-Speaker A 621

Amplifier-Speaker A 621; Ampex; San Carlos, (ID = 1946497) Ampl/Mixer Amplifier-Speaker A 621; Ampex; San Carlos, (ID = 1951229) Ampl/Mixer
Amplifier-Speaker A 621; Ampex; San Carlos, (ID = 1951232) Ampl/Mixer Amplifier-Speaker A 621; Ampex; San Carlos, (ID = 1951235) Ampl/Mixer
Amplifier-Speaker A 621; Ampex; San Carlos, (ID = 1951238) Ampl/Mixer Amplifier-Speaker A 621; Ampex; San Carlos, (ID = 1951239) Ampl/Mixer
Amplifier-Speaker A 621; Ampex; San Carlos, (ID = 1951240) Ampl/Mixer Amplifier-Speaker A 621; Ampex; San Carlos, (ID = 1951241) Ampl/Mixer
Amplifier-Speaker A 621; Ampex; San Carlos, (ID = 1951242) Ampl/Mixer Amplifier-Speaker A 621; Ampex; San Carlos, (ID = 1951243) Ampl/Mixer
Use red slider bar for more.
Amplifier-Speaker A 621; Ampex; San Carlos, (ID = 1946497) Ampl/Mixer

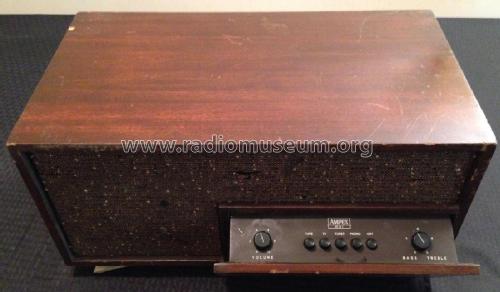

Ampex; San Carlos,: Amplifier-Speaker A 621 [Ampl/Mixer] ID = 1946497 800x288
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier-Speaker A 621, Ampex; San Carlos, CA:
a pair of amps -- Bild aus ebay, #151136954648, Verkäufer 9957easy

Country:  United States of America (USA)
Manufacturer / Brand:  Ampex; San Carlos, CA
Year: 1955 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 5: 5879 12AU7 6V6 6V6 6AX5
Main principle Audio-Amplification
Wave bands - without
Details Loudspeaker + integr.Amplifier
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Amplifier-Speaker A 621 - Ampex; San Carlos, CA
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 20.5 x 10.25 x 11.5 inch / 521 x 260 x 292 mm
Notes

Inputs: Tape, TV, Tuner, Phono.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
