Magnetic Tape Recorder 601

Magnetic Tape Recorder 601; Ampex; San Carlos, (ID = 546628) R-Player Magnetic Tape Recorder 601; Ampex; San Carlos, (ID = 546629) R-Player
Magnetic Tape Recorder 601; Ampex; San Carlos, (ID = 1084245) R-Player Magnetic Tape Recorder 601; Ampex; San Carlos, (ID = 1084247) R-Player

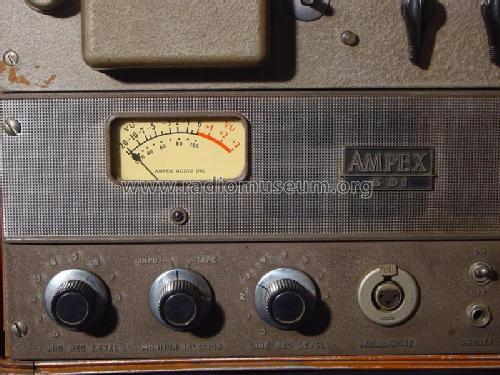

Magnetic Tape Recorder 601; Ampex; San Carlos, (ID = 1084248) R-Player
Use red slider bar for more.
Magnetic Tape Recorder 601; Ampex; San Carlos, (ID = 546628) R-Player
Ampex; San Carlos,: Magnetic Tape Recorder 601 [R-Player] ID = 546628 480x301
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetic Tape Recorder 601, Ampex; San Carlos, CA:
Ampex Operation Maintenance Manual 3rd Edition Oct. 1958

Country:  United States of America (USA)
Manufacturer / Brand:  Ampex; San Carlos, CA
Year: 1955–1960 ?? Category: Sound/Video Recorder and/or Player
Valves / Tubes 8: 12AU7 12AU7 12AU7 12AY7 5879 5879 6F5 5Y3GT
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Magnetic Tape Recorder 601 - Ampex; San Carlos, CA
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.5 x 16.5 x 5 inch / 318 x 419 x 127 mm
Notes Ampex Magnetic Tape Recorder 601;
Single channel, up to 40 - 15.000 Hz, dual speed: 7.5 & 3.75 ips, reel to reel, 600 Ohm audio in and out, line level VU monitor, microphone input,
tape speed conversion kits for 60 or 50 Hz mains operation as an option as well as an Amplifier Speaker model 620, Samsonite case in saddle tan, Brunette or Blonde furniture cabinet, full or half track head assembly, 61 W power consumption.
Mentioned in - - Manufacturers Literature (Ampex Operation Maintenance Manual 3rd Edition Oct. 1958)

Model page created by a member from A. See "Data change" for further contributors.
