AR58

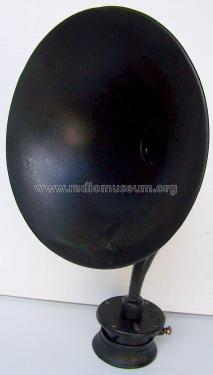

AR58; Amplion, Alfred (ID = 2382662) Speaker-P AR58; Amplion, Alfred (ID = 2382663) Speaker-P
AR58; Amplion, Alfred (ID = 2382664) Speaker-P AR58; Amplion, Alfred (ID = 2382665) Speaker-P
AR58; Amplion, Alfred (ID = 2382666) Speaker-P AR58; Amplion, Alfred (ID = 2382667) Speaker-P
AR58; Amplion, Alfred (ID = 2382668) Speaker-P
Use red slider bar for more.
AR58; Amplion, Alfred (ID = 2382662) Speaker-P
Amplion, Alfred: AR58 [Speaker-P] ID = 2382662 1222x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR58, Amplion, Alfred Graham; GB (see also USA):
Amplion AR58 Horn speaker RHS view

Country:  Great Britain (UK)
Manufacturer / Brand:  Amplion, Alfred Graham; GB (see also USA)
Year: 1923 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Horn / Ø 30 cm = 11.8 inch
Power out
from Radiomuseum.org Model: AR58 - Amplion, Alfred Graham; GB see
Material Metal case
Dimensions (WHD) 300 x 530 x 260 mm / 11.8 x 20.9 x 10.2 inch
Notes

The horn flare diameter is 300mm.
The height from desk to top of flare is 530mm.
The depth from the front of flare to back of swan neck is 260mm.
AR58 driver diameter is 105mm

Collectors' prices

Model page created by Lindsay Shepherd. See "Data change" for further contributors.
