For model AR-19 Dragon, Amplion Corp. of America; New York, NY:
Ebay Seller firebottles Item 200668423822

Country:  United States of America (USA)
Manufacturer / Brand:  Amplion Corp. of America; New York, NY
Year: 1924 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Horn
Power out
from Radiomuseum.org Model: AR-19 Dragon - Amplion Corp. of America; New
Material Various materials
Shape Miscellaneous shapes - described under notes.
Notes

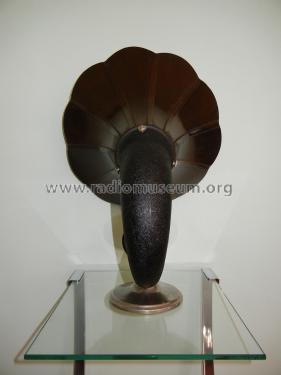

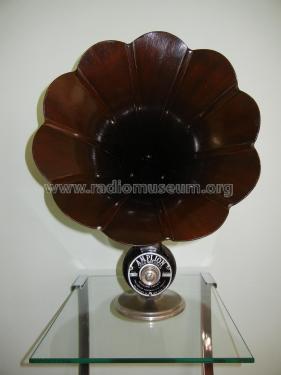

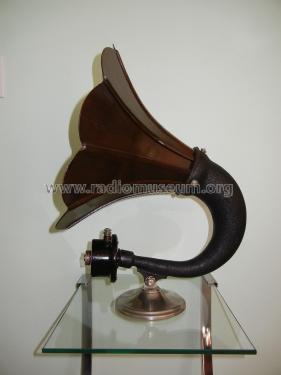

Wooden trumpet, 10 petals. Similar to the British Amplion AR-19. Impedance 2000 Ohms.
Horn measures 38.5cm in diameter in a heavy adjustable metal base.

Price in Dec. 1926.

Price in first year of sale 42.50 $
Mentioned in Radio Horn Speaker Encyclopedia, by Floyd A.Paul

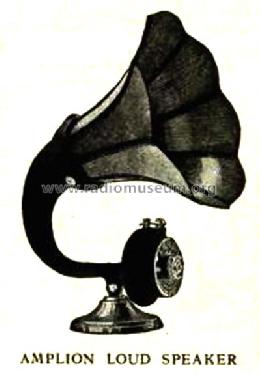

Literature/Schematics (2) Radio Broadcast, May 1925, p. 114

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
