For model Cabinette A114, Amplion, Alfred Graham; GB (see also USA):

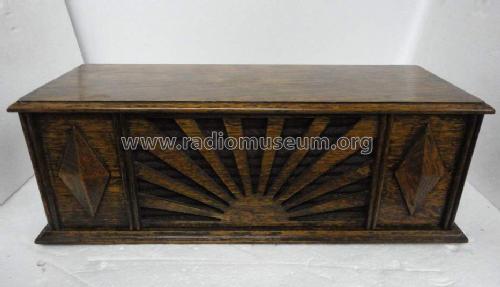

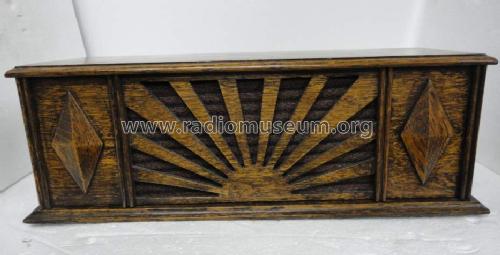

Amplion Cabinette Speaker missing. FRont view

Country:  Great Britain (UK)
Manufacturer / Brand:  Amplion, Alfred Graham; GB (see also USA)
Year: 1926 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Horn
Power out
from Radiomuseum.org Model: Cabinette A114 - Amplion, Alfred Graham; GB see
Material Various materials
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 6 x 16.5 x 6 inch / 152 x 419 x 152 mm

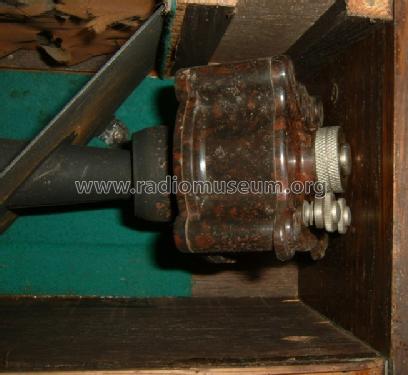

Notes Horn loud-speaker housed in an oak cabinet, drive unit in bakelite case. (Also mahogany version price £3.15s.Od).
Price in first year of sale 3.00 £
Mentioned in Radio! Radio! (fig.856)

Model page created by Jean-Luc Comblin. See "Data change" for further contributors.
