Radiolux Junior RS2 O

Radiolux Junior RS2 O; Amplion, Alfred (ID = 611544) Speaker-P Radiolux Junior RS2 O; Amplion, Alfred (ID = 611589) Speaker-P
Radiolux Junior RS2 O; Amplion, Alfred (ID = 611590) Speaker-P Radiolux Junior RS2 O; Amplion, Alfred (ID = 1081053) Speaker-P
Radiolux Junior RS2 O; Amplion, Alfred (ID = 1081054) Speaker-P Radiolux Junior RS2 O; Amplion, Alfred (ID = 1081055) Speaker-P
Radiolux Junior RS2 O; Amplion, Alfred (ID = 1081056) Speaker-P Radiolux Junior RS2 O; Amplion, Alfred (ID = 1081057) Speaker-P
Use red slider bar for more.

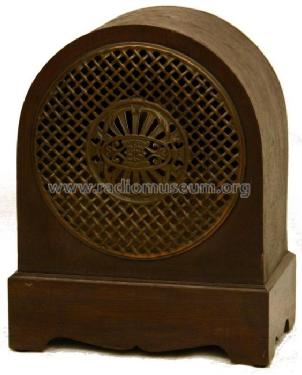

Radiolux Junior RS2 O; Amplion, Alfred (ID = 611544) Speaker-P
Amplion, Alfred: Radiolux Junior RS2 O [Speaker-P] ID = 611544 565x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiolux Junior RS2 O, Amplion, Alfred Graham; GB (see also USA):
Amplion Radiolux RS2M

Country:  Great Britain (UK)
Manufacturer / Brand:  Amplion, Alfred Graham; GB (see also USA)
Year: 1925 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Horn
Power out
from Radiomuseum.org Model: Radiolux Junior RS2 O - Amplion, Alfred Graham; GB see
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 11 x 13.7 x 6.75 inch / 279 x 348 x 171 mm
Notes

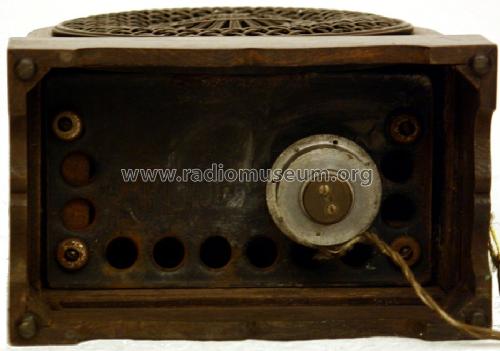

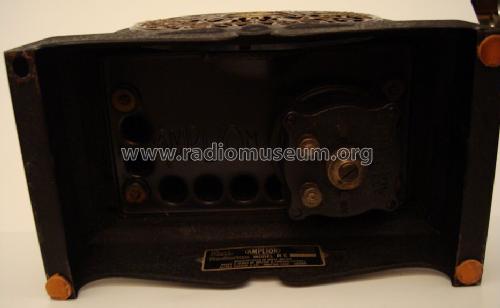

Folded metal horn loud-speaker with drive unit screwed under base, oak cabinet.

Price in first year of sale 4.00 £
Collectors' prices
Mentioned in Radio! Radio! (fig.844)
Literature/Schematics (1) Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 414)

Model page created by Jean-Luc Comblin. See "Data change" for further contributors.
