Speaker Driver (Antriebssystem) AU4X

Speaker Driver AU4X; Amplion, Alfred (ID = 2373568) Radio part Speaker Driver AU4X; Amplion, Alfred (ID = 2373569) Radio part
Speaker Driver AU4X; Amplion, Alfred (ID = 2373570) Radio part Speaker Driver AU4X; Amplion, Alfred (ID = 2373572) Radio part
Speaker Driver AU4X; Amplion, Alfred (ID = 2385092) Radio part Speaker Driver AU4X; Amplion, Alfred (ID = 2385093) Radio part
Speaker Driver AU4X; Amplion, Alfred (ID = 2385094) Radio part Speaker Driver AU4X; Amplion, Alfred (ID = 2385095) Radio part
Use red slider bar for more.
Speaker Driver AU4X; Amplion, Alfred (ID = 2373568) Radio part
Amplion, Alfred: Speaker Driver AU4X [Radio part] ID = 2373568 1400x1461
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker Driver (Antriebssystem) AU4X, Amplion, Alfred Graham; GB (see also USA)

Country:  Great Britain (UK)
Manufacturer / Brand:  Amplion, Alfred Graham; GB (see also USA)
Year: 1926/1927 ? Category: Radio part (not a module)
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker
Power out
from Radiomuseum.org Model: Speaker Driver AU4X - Amplion, Alfred Graham; GB see
Material Moulded (Bakelite or Plastics)
Shape Chassis only or for «building in»
Dimensions (WHD) 76 x 78 x 88 mm / 3 x 3.1 x 3.5 inch
Notes

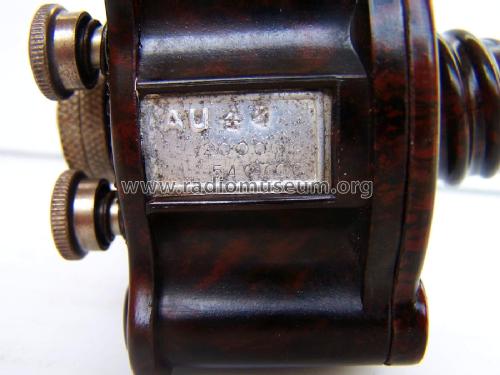

The driver from an Amplion AU4X horn speaker.

Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Mentioned in BVWS auction 24 Sep 2017

Model page created by Manfred Rathgeb. See "Data change" for further contributors.
