A96

A96; Amplix CGTVE; Paris (ID = 1730483) Radio A96; Amplix CGTVE; Paris (ID = 1730484) Radio
Use red slider bar for more.
A96; Amplix CGTVE; Paris (ID = 1730483) Radio

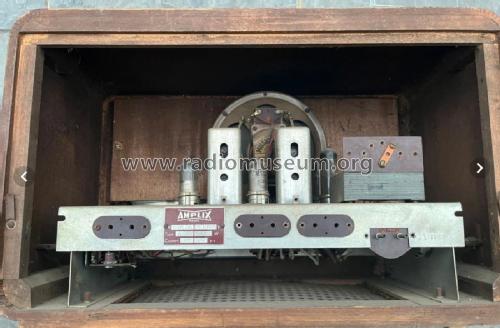

Amplix CGTVE; Paris: A96 [Radio] ID = 1730483 933x625
Select picture or schematic to display from thumbnails on the right and click for download.
For model A96, Amplix (CGTVE); Paris:
depliant Amplix

Country:  France
Manufacturer / Brand:  Amplix (CGTVE); Paris
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH41 EF41 EAF41 EL41 EM4 GZ40
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 145; 220; 240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: A96 - Amplix CGTVE; Paris
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 300 x 260 mm / 18.1 x 11.8 x 10.2 inch
Notes

Même appareil pour courant 25 périodes avec supplément.

Net weight (2.2 lb = 1 kg) 7.6 kg / 16 lb 11.8 oz (16.74 lb)
Mentioned in -- Original prospect or advert

Model page created by Manfred Rathgeb. See "Data change" for further contributors.
