• Year
  • 1960 ?
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 131620

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 2
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Dry Batteries / 4,5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

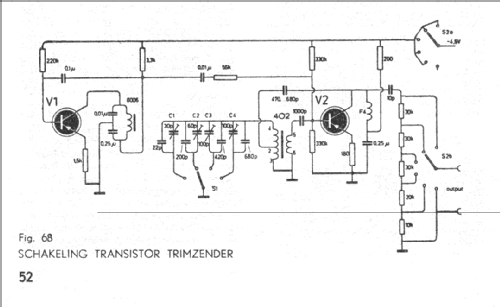

  • Model: Transistor Trimzender - Amroh NV Radio Bulletin
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 175 x 90 x 90 mm / 6.9 x 3.5 x 3.5 inch
  • Notes
  • Abgleich-Oszillator für Empfänger-Service, Bauanleitung veröffentlicht in einem Buch. Wurde gebaut mit zwei Germanium-Transistoren: OC71 (V1) und 2N412 oder 2N410 (V2). NB Amroh 6006 war eine 6H NF-Spule, Amroh F4 war eine 100mH HF-Spule. Ausgangsspannung schaltbar, NF-Modulation 1000 Hz, vier schaltbare RF-Frequenzen: 470 kHz, 531 kHz, 1003 kHz und 1456 kHz.
  • Source of data
  • - - Manufacturers Literature
  • Mentioned in
  • Electronicus, "Doe het eens met Transistoren", Bussum: De Muiderkring 1960, 3e druk, p.52-53.
  • Author
  • Model page created by Aren van Waarde. See "Data change" for further contributors.
