• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1969 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 278342

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• ASZ18

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Printed Circuit Board

• from Radiomuseum.org
• Model: Alimentatore High-Kit UK55 - Amtron, High-Kit, Amtroncraft;

• Shape
• Chassis only or for «building in»

• Notes

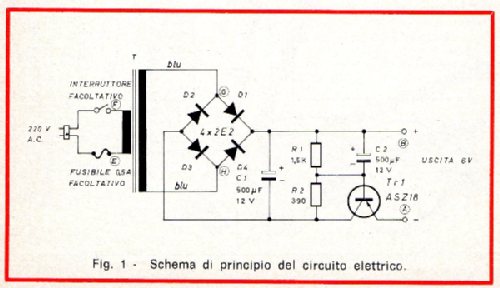

• Questo kit permette la realizzazione di un alimentatore a 6 Vcc 300 mA, il cui circuito risulta formato da un trasformatore d'ingresso, da un ponte di raddrizzamento a diodi (4 x 2E2) a doppia semionda, da una cella di filtraggio e da un transistore (ASZ 18) in uscita che lavora come stabilizzatore di tensione.

• Literature/Schematics (1)
• Descrizione e specifiche di montaggio originali High-Kit

• Author
• Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
