• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1972

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 204012

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• AC194 AC194 AD149 BZY88

• Wave bands
• - without

• Details
• Power Supply (not only Batt.El.)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org

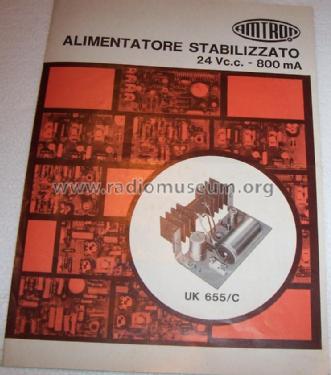

• Model: Alimentatore stabilizzato UK655/C - Amtron, High-Kit, Amtroncraft;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 150 x 100 x 110 mm / 5.9 x 3.9 x 4.3 inch

• Notes
• Tensione in uscita: 24 Vc.c.
  Limiti di regolazione della tensione d'uscita: da ~ 20,5 -=- 24,5 Vc.c.
  Stabilizzazione di tensione: 1,5%
  Massima corrente di carico: 800 mA
  Residuo della corrente alternata: < 3 mV.

  Apparecchio in scatola di montaggio (kit) o preassemblato.

• Literature/Schematics (1)
• Amtron Catalogo Kit N.6
