• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1974 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 277920

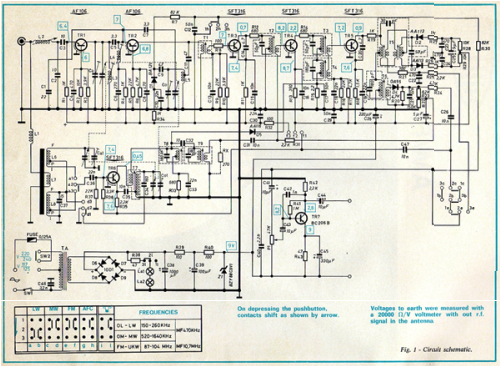

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF106 AF106 SFT316 SFT316 SFT316 SFT316 BC206 BA121 AA113 AA116 OA95 10D-1 BZY88

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117-125; 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: AM/FM Tuner - Sintonizzatore OL - OM - FM UK540/C - Amtron, High-Kit, Amtroncraft;

• Shape
• Book-shelf unit.

• Notes

• Questo sintonizzatore è adatto ad essere collegato all'amplificatore UK535/C.

  • Gamma di sintonia: OL 150 - 26 kHz, OM 520 - 1640 kHz; FM 87 - 104 MHz.
  • Media frequenza AM: 470 kHz, FM 10,7 MHz.
  • Sensibilità: LW  200 µV/m - MW 200 µV/m - FM  5 µV.

  Parts list states a transistor type AF104 which is erroneous. In the circuit description the correct type AF106 is mentioned.

• Mentioned in
• Catalogo originale Amtron n. 7

• Literature/Schematics (1)

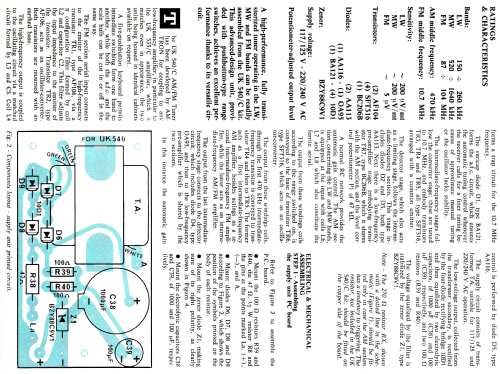

• Descrizione e specifiche di montaggio originali Amtron

• Author
• Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
