Amplificatore a Larga Banda UK 935
Amtron, (High-Kit, Amtroncraft); Milano
- Country
- Italy
- Manufacturer / Brand
- Amtron, (High-Kit, Amtroncraft); Milano
- Year
- 1971–1975 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 319423
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 2
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit. / CC: 9-15 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Printed Circuit Board
- from Radiomuseum.org
- Model: Amplificatore a Larga Banda UK 935 - Amtron, High-Kit, Amtroncraft;
- Shape
- Chassis only or for «building in»
- Notes
-
Amplificatore a larga banda per segnali da inviare ad un oscilloscopio o altri strumenti. Range di frequenza: da 20 Hz a 150 MHz. Guadagno: a 1 MHz: 30 dB, a 150 MHz: 3 dB. Fornito in scatola di montaggio da GBC.
- Mentioned in

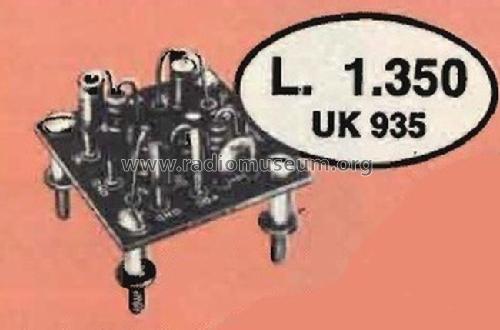

- -- Original prospect or advert (Rivista Sperimentare dicembre 1975)
- Literature/Schematics (1)
- Amtron Katalog 71/72
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
