• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1976 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 201491

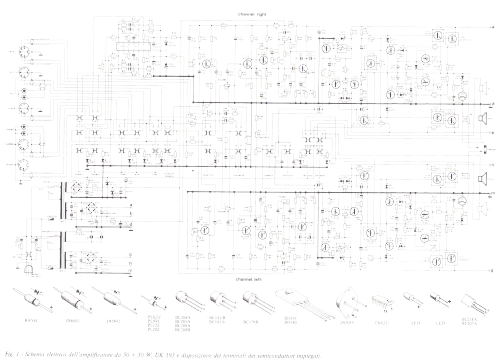

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 34

• Semiconductors
• unknown_tr TBA231

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 220; 250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Amplificatore Stereo UK-193 - Amtron, High-Kit, Amtroncraft;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 490 x 320 x 128 mm / 19.3 x 12.6 x 5 inch

• Notes
• Oltre ai transistor sono presenti anche 45 diodi di qui 9 led, e 1 IC TBA 231 come preamplificatore di ingresso magnetico, potenza 50+50 watt su 4 ohm, venduto in scatola di montaggio distribuito dalla GBC di MILANO.

• Author
• Model page created by Pasquale Baiocato. See "Data change" for further contributors.
