Impedance Adaptor UK950

Impedance Adaptor UK950; Amtron, High-Kit, (ID = 2462268) Antenna
Impedance Adaptor UK950; Amtron, High-Kit, (ID = 2462264) Antenna Impedance Adaptor UK950; Amtron, High-Kit, (ID = 2462265) Antenna
Impedance Adaptor UK950; Amtron, High-Kit, (ID = 2462266) Antenna
Use red slider bar for more.
Impedance Adaptor UK950; Amtron, High-Kit, (ID = 2462264) Antenna
Amtron, High-Kit,: Impedance Adaptor UK950 [Antenna] ID = 2462264 1067x717
Select picture or schematic to display from thumbnails on the right and click for download.
For model Impedance Adaptor UK950, Amtron, (High-Kit, Amtroncraft); Milano:

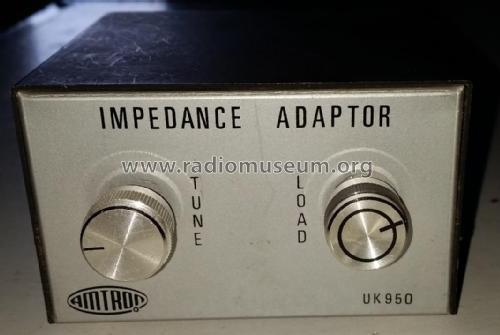

Frontside

Country:  Italy
Manufacturer / Brand:  Amtron, (High-Kit, Amtroncraft); Milano
Year: 1970 ?? Category: Antenna (Aerial) or Coupler
Wave bands Short Wave (SW only)
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Impedance Adaptor UK950 - Amtron, High-Kit, Amtroncraft;
Material Metal case
Shape Chassis only or for «building in»
Notes

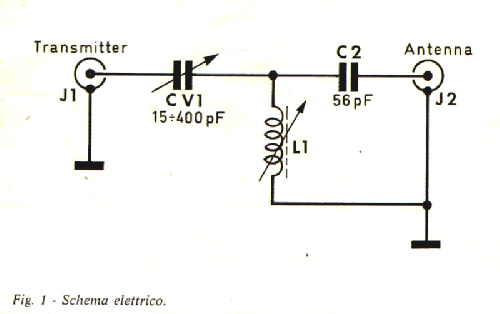

Gamma di funzionamento: 27 MHz (CB)

Adattamento per un ROSmax di: 1 : 5

Impedenza d'ingresso e uscita: 52 Ohm

Massima potenza di uscita del TX: 15 W

Questo adattatore utilizzato in unione al misuratore di ROS UK 590, o ad altro strumento di questo genere, permette di eliminare le onde stazionarie dei trasmettitori CB
