• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1978 ?

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 208610

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors
• L130

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50-60 Hz: 115; 220; 250 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

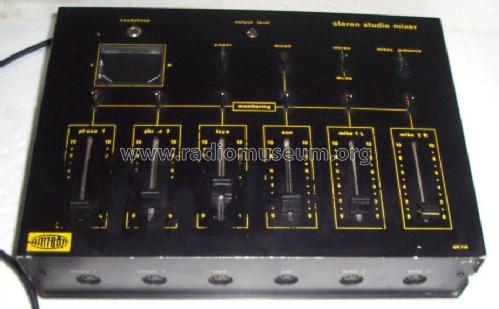

• Model: Mixer stereo 6 ingressi UK718 - UK718W - Amtron, High-Kit, Amtroncraft;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 300 x 65 x 215 mm / 11.8 x 2.6 x 8.5 inch

• Notes

• Miscelatore con 4 ingressi stereo (Fono 1 e 2, Tape e Aux) e 2 ingressi mono (Micro 1 Left, Micro 2 Right).
  Impedenze ingresso: Fono 1 e 2: 47 kΩ - Tape: 47 kΩ - Aux: 470 kΩ - Micro 1 e 2: 120 kΩ.
  Impedenza di uscita: 4,7 kΩ.
  Sensibilità: Fono 1 e 2: 4 mV - Aux: 120 mV - Tape: 120 mV - Micro 1 e 2: 3,5 mV.
  Livello di uscita regolabile da 0 a 750 mV. Distorsione < 0.3%.
  Risposta in frequenza: Micro: 19÷6.000 Hz - Aux e Tape: 10÷60.000 Hz
  Fono: 30÷18.000 Hz R.I.A.A. ± 2 dB.
  Uscita cuffia stereo 8 Ω, con la quale si può monitorare ognuno dei 6 canali.

  Distribuito da GBC-Milano in kit (UK718) o preassemblato (UK 718W).

• Mentioned in
• -- Original prospect or advert (Da: CQ Elettronica, CD edizioni numero 11/131 novembre 1977.)

• Author
• Model page created by Pasquale Baiocato. See "Data change" for further contributors.
