• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1972 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 316155

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ZM1336K ZM1336K ZM1336K

• Number of Transistors
• 7

• Semiconductors
• BC154 BC113 BC113 BC222 BC116 2N1711 BF244 SN7441 SN7490 SN7410 SN7472 SN7400 µA709 µA776 L141T2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 220; 250 Volt

• Material
• Various materials

• from Radiomuseum.org

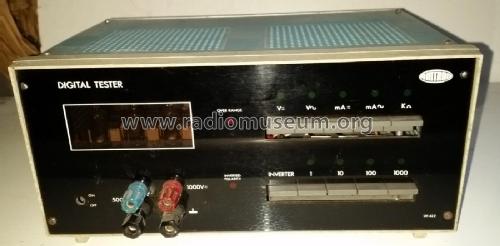

• Model: Multimetro Digitale UK 422 - Amtron, High-Kit, Amtroncraft;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 295 x 155 x 140 mm / 11.6 x 6.1 x 5.5 inch

• Notes
• • Diodi impiegati: 10xBA128; 2XBAY73: 1N4004; 3x1N4001
  • Zener impiegati: 2xBZY88C8V2; 2xBZY88C5V1
  • Cirquiti integrati impiegati: 3x7441; 4x7490; 7410; 7472; 7400; 2x709C; 776; l141
  • Tubi visualizzatori: 3xZM 1336K

  Funzioni: Vcc, Vca, Icc, Ica, KOhm

  Gamma di misura fondo scala:

  • Tensioni 1 V, 10 V, 100 V, 1000 V
  • Correnti 1 mA, 10 mA, 100 mA, 1 A
  • Resistenze: 1 kΩ 10 kΩ, 100 kΩ, 1 MΩ

  Impedenza d'ingresso non meno di 10 MΩ

  Alimentazione  della rete: 115-220-250 Vc.a. - 50-60 Hz

• Net weight (2.2 lb = 1 kg)
• 2.170 kg / 4 lb 12.5 oz (4.78 lb)
