Power Supply Alimentatore 22-0-22 Vca - 2A UK 609

Power Supply Alimentatore 22-0-22 Vca - 2A UK 609; Amtron, High-Kit, (ID = 1940445) Power-S
Power Supply Alimentatore 22-0-22 Vca - 2A UK 609; Amtron, High-Kit, (ID = 1557692) Power-S
Use red slider bar for more.
Power Supply Alimentatore 22-0-22 Vca - 2A UK 609; Amtron, High-Kit, (ID = 1557692) Power-S

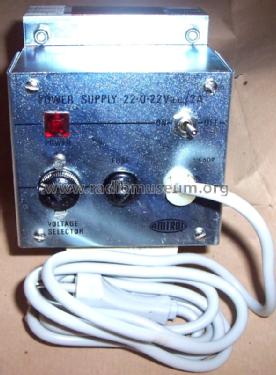

Amtron, High-Kit,: Power Supply Alimentatore 22-0-22 Vca - 2A UK 609 [Power-S] ID = 1557692 591x801
Select picture or schematic to display from thumbnails on the right and click for download.
For model Power Supply Alimentatore 22-0-22 Vca - 2A UK 609, Amtron, (High-Kit, Amtroncraft); Milano

Country:  Italy
Manufacturer / Brand:  Amtron, (High-Kit, Amtroncraft); Milano
Year: 1970 ?? Category: Power supply/conditioner or battery or charger
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115; 220; 250 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Power Supply Alimentatore 22-0-22 Vca - 2A UK 609 - Amtron, High-Kit, Amtroncraft;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 115 x 100 x 86 mm / 4.5 x 3.9 x 3.4 inch
Notes

Questo Alimentatore a corrente alternata, tensione d'uscita 22-0-22 Vca 2 A, è stato studiato per l'alimentazione per i seguenti kit Amtron - UK 118 amplificatore gruppo comandi, UK 119 amplificatore di potenza, UK 130/U preamplificatore gruppo comandi, UK 120/U amplificatore di potenza. Può essere impiegato per altri montaggi che richiedano la stessa tensione.

Net weight (2.2 lb = 1 kg) 1.960 kg / 4 lb 5.1 oz (4.317 lb)
Mentioned in originale Amtron
Literature/Schematics (1) originakle Amtron

Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
