Preamplificatore microfonico (Mike Preamplifier) UK275

Amtron, (High-Kit, Amtroncraft); Milano

  • Year
  • 1972
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 204035

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Batteries / addl. power jack / 9 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Preamplificatore microfonico UK275 - Amtron, High-Kit, Amtroncraft;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 110 x 77 x 50 mm / 4.3 x 3 x 2 inch
  • Notes
  • Corrente assorbita: 5 mA
    Guadagno a 1000 Hz: 30 dB
    Impedenza di ingresso: 10 kOhm
    Impedenza di uscita: 1,5 kOhm.

    Apparecchio in scatola di montaggio (kit) o preassemblato.
  • Literature/Schematics (1)

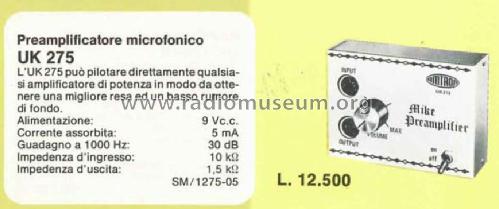

  • Amtron Catalogo Kit N.6
