Fénix Junior 11371

Fénix Junior 11371; Anglo Española de (ID = 744242) Radio Fénix Junior 11371; Anglo Española de (ID = 744244) Radio
Fénix Junior 11371; Anglo Española de (ID = 744245) Radio Fénix Junior 11371; Anglo Española de (ID = 744246) Radio
Fénix Junior 11371; Anglo Española de (ID = 767681) Radio
Use red slider bar for more.

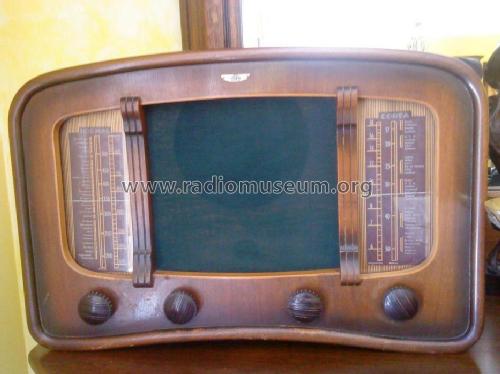

Fénix Junior 11371; Anglo Española de (ID = 744242) Radio
Anglo Española de: Fénix Junior 11371 [Radio] ID = 744242 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fénix Junior 11371, Anglo Española de Electricidad S.A. (AEESA)

Country:  Spain
Manufacturer / Brand:  Anglo Española de Electricidad S.A. (AEESA)
alternative name

Sdad. Anglo Esp. de El. || Sociedad Anglo
Brand
AEESA
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 EF9 EBC3 EL3N AZ1
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Fénix Junior 11371 - Anglo Española de Electricidad
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 380 x 240 mm / 22.8 x 15 x 9.4 inch
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) Anucios La Vanguardia Española 15 diciembre 1949, ABC 3 y 17 de Marzo de 1950

Model page created by Juan Carlos Melgar López. See "Data change" for further contributors.
