Radiofonógrafo 366-C
Anglo Española de Electricidad (AEESA); Barcelona
- Country
- Spain
- Manufacturer / Brand
- Anglo Española de Electricidad (AEESA); Barcelona
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 353790
-
- alternative name: Sdad. Anglo Esp. de El. || Sociedad Anglo
- Brand: AEESA

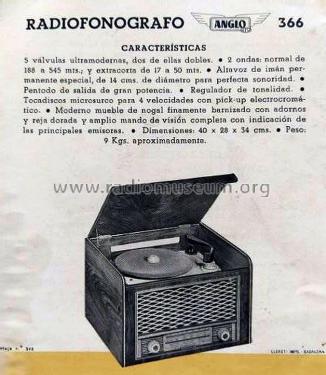

Anuncio ABC enero 1956
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiofonógrafo 366-C - Anglo Española de Electricidad
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 400 x 280 x 340 mm / 15.7 x 11 x 13.4 inch
- Notes
-
Anglo Española de Electricidad S.A. (AEESA), Radiofonógrafo 366
Tocadiscos microsurco de 4 velocidades con pick-up electromagnético
El anuncio sólo pone 366 pero el modelo viene con la C habitual en Anglo para los Radiofonógrafos
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
