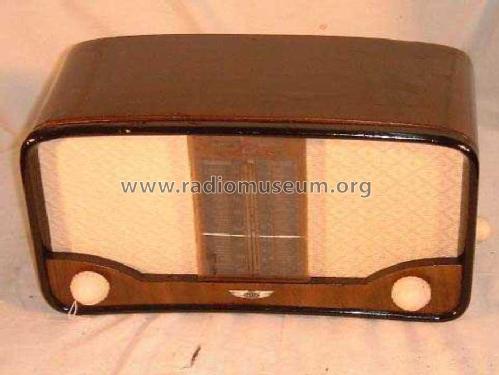

Leo 17 AD

Anglo Española de Electricidad (AEESA); Barcelona

Data
Forum
Pictures
Collections

  • Year
  • 1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 96991
    • alternative name: Sdad. Anglo Esp. de El. || Sociedad Anglo
    • Brand: AEESA

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 422,5 kHz; 1 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Leo 17 AD - Anglo Española de Electricidad
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 350 x 210 x 170 mm / 13.8 x 8.3 x 6.7 inch
  • Notes
  • Serie Estelar 1950
  • Net weight (2.2 lb = 1 kg)
  • 3.4 kg / 7 lb 7.8 oz (7.489 lb)
  • Price in first year of sale
  • 1,789.00 ESP
  • Source of data
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Anuncio la Vanguardia Española 15 Diciembre 1949)
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
