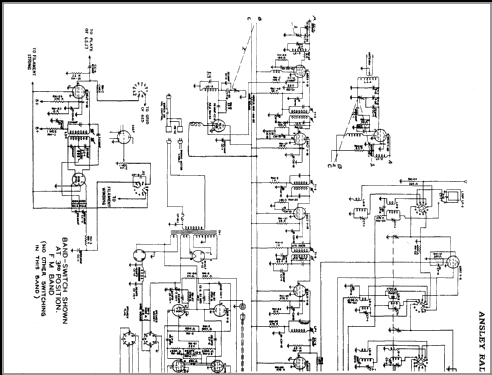

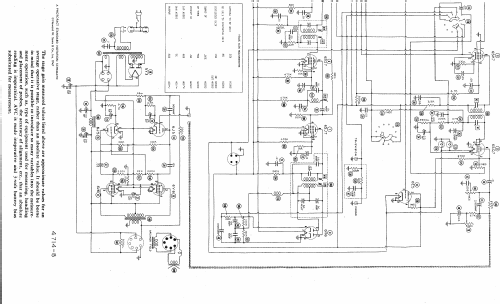

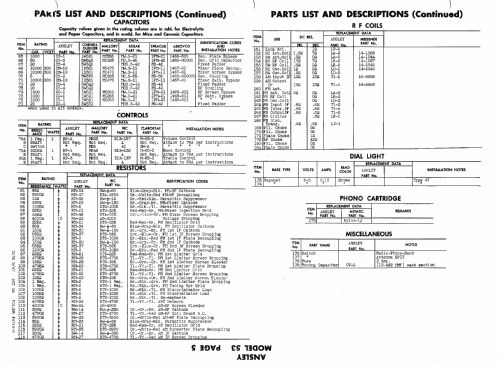

Select picture or schematic to display from thumbnails on the right and click for download.
For model 53, Ansley Radio; New York (NY), Trenton (NJ):
SAMS

Country:  United States of America (USA)
Manufacturer / Brand:  Ansley Radio; New York (NY), Trenton (NJ)
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 18: 6C4 6BA6 6BE6 6AC7 6E5 6AC7 6SJ7 6SJ7 6H6 6SK7 6SA7 6SK7 6SQ7 6J5 6J5 6V6 6V6 5Y3
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 7 AM circuit(s)     15 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 53 - Ansley Radio; New York NY,
Material Metal case
Shape Chassis only or for «building in»
Notes The cabinet styles for the chassis Ansley model 53 are "Century", "Pembroke", "Conventry", "Normandy", "Whitby", "Winslow", "Plaza", "Salem" and "Skyline". The model 53 is an AC operated Phono-Radio Combination FM-AM Superheterodyne Receiver with Self Contained Loop Antenna and Pushbutton Tuning. The Ansley model 53 is also the radio chassis for the Piano/Phono/Radio-combination "Dynatone 105".
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 9/47, set 24, folder 4714-8)
