• Country
• United States of America (USA)

• Manufacturer / Brand
• Ansley Radio; New York (NY), Trenton (NJ)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 32754

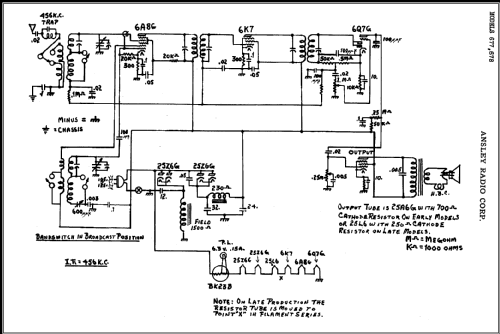

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8G 6K7 6Q7G 25A6 25Z6G 25Z6G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Chassis 677 - Ansley Radio; New York NY,

• Shape
• Chassis only or for «building in»

• Notes
• Used alternatively with 678 in models: D9, D10, D17, D18, U10, U11.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Literature/Schematics (1)
• Rider's Perpetual, Volume 8 = 1937 and before (sheet 8-2, in D9, D10, etc.)

• Other Models

• Here you find 115 models, 24 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Ansley Radio; New York (NY), Trenton (NJ)
