D10-A

D10-A; Ansley Radio; New (ID = 690896) Radio

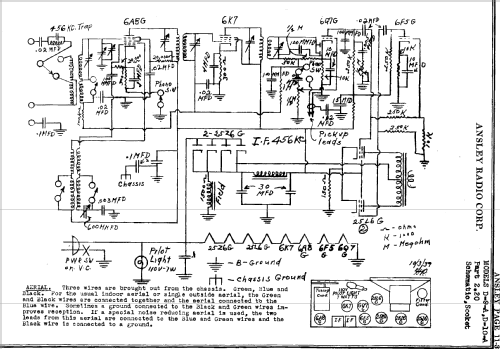

D10-A; Ansley Radio; New (ID = 690897) Radio
D10-A; Ansley Radio; New (ID = 1039689) Radio D10-A; Ansley Radio; New (ID = 1039690) Radio
Use red slider bar for more.
D10-A; Ansley Radio; New (ID = 1039689) Radio
Ansley Radio; New: D10-A [Radio] ID = 1039689 650x515
Select picture or schematic to display from thumbnails on the right and click for download.
For model D10-A, Ansley Radio; New York (NY), Trenton (NJ):
Scanned from the Radio Retailing February 1941.

Country:  United States of America (USA)
Manufacturer / Brand:  Ansley Radio; New York (NY), Trenton (NJ)
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6K6 6SK7 6SQ7 25L6GT 25L6GT 25Z6GT 25Z6GT 6SF5
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: D10-A - Ansley Radio; New York NY,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes uses Tuner Part 2.30
Price in first year of sale 84.50 $
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Radio Retailing (Radio & Television R.) (February 1941.)


All listed radios etc. from Ansley Radio; New York (NY), Trenton (NJ)
Here you find 113 models, 22 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
