D17A 1940 AC/DC

D17A; Ansley Radio; New (ID = 699842) Radio
Use red slider bar for more.
D17A; Ansley Radio; New (ID = 699842) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Ansley Radio; New York (NY), Trenton (NJ)
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6K8 6SK7 6SQ7 6SF5 6U5 25L6GT 25L6GT 25Z6GT 25Z6GT
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: D17A [1940 AC/DC] - Ansley Radio; New York NY,

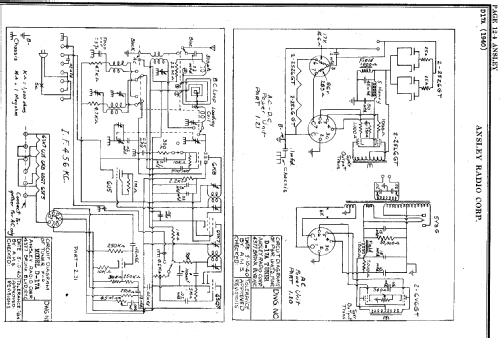

Notes uses Tuner Type 2.31 and Amp/SPU Type 1.21
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
