Frequenzumsetzer 3222.21-60

Frequenzumsetzer 3222.21-60; Antennenwerke Bad (ID = 523658) Converter Frequenzumsetzer 3222.21-60; Antennenwerke Bad (ID = 523659) Converter

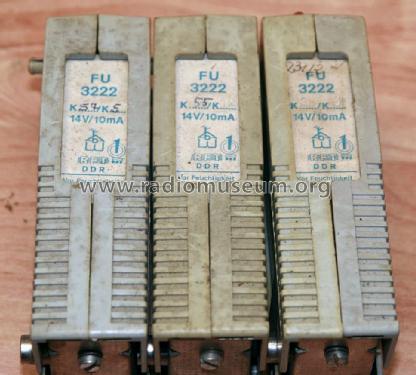

Frequenzumsetzer 3222.21-60; Antennenwerke Bad (ID = 523661) Converter Frequenzumsetzer 3222.21-60; Antennenwerke Bad (ID = 2065518) Converter
Use red slider bar for more.
Frequenzumsetzer 3222.21-60; Antennenwerke Bad (ID = 523658) Converter
Antennenwerke Bad: Frequenzumsetzer 3222.21-60 [Converter] ID = 523658 933x470
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frequenzumsetzer 3222.21-60, Antennenwerke Bad Blankenburg /Thür., VEB; - vorm. Heliogen:
Serien Nr.. keine org.Umsetzung Kanal 22 auf 11

Country:  Germany
Manufacturer / Brand:  Antennenwerke Bad Blankenburg /Thür., VEB; - vorm. Heliogen
Brand

VEB Antennenwerke Bad Blankenburg; Bad B.
Year: 1975 ?? Category: Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
Semiconductors (the count is only for transistors) 3:
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / 14 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Frequenzumsetzer 3222.21-60 - Antennenwerke Bad Blankenburg
Material Various materials
Dimensions (WHD) 60 x 125 x 35 mm / 2.4 x 4.9 x 1.4 inch
Notes

Frequenzumsetzer für kleinere Antennenanlagen; einstellbare Umsetzung von B IV/V-UHF- Signalen in B III. Eingang: Kanäle 21 bis 60, Ausgang: Kanäle 5 bis 12; Verstärkung: 15 dB, Rauschmaß: 10 dB, Stromaufnahme: 8 mA.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Price in first year of sale 327.00 Mark
Source of data - - Data from my own collection
Mentioned in Sortimentskatalog Elektroakustik (DDR, 1984)

Model page created by Jörg Kulbe. See "Data change" for further contributors.
