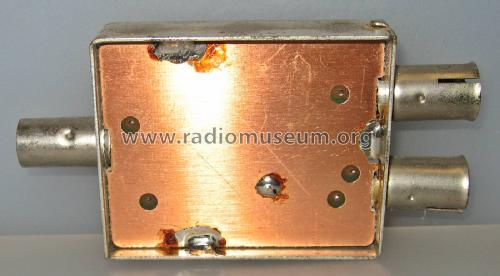

Richtkoppler 3035.01

Richtkoppler 3035.01; Antennenwerke Bad (ID = 2051250) Misc Richtkoppler 3035.01; Antennenwerke Bad (ID = 2406523) Misc
Richtkoppler 3035.01; Antennenwerke Bad (ID = 2406524) Misc Richtkoppler 3035.01; Antennenwerke Bad (ID = 1652989) Misc
Use red slider bar for more.
Richtkoppler 3035.01; Antennenwerke Bad (ID = 2051250) Misc
Antennenwerke Bad: Richtkoppler 3035.01 [Misc] ID = 2051250 670x890
Select picture or schematic to display from thumbnails on the right and click for download.
For model Richtkoppler 3035.01, Antennenwerke Bad Blankenburg /Thür., VEB; - vorm. Heliogen

Country:  Germany
Manufacturer / Brand:  Antennenwerke Bad Blankenburg /Thür., VEB; - vorm. Heliogen
Brand

VEB Antennenwerke Bad Blankenburg; Bad B.
Year: 1979 Category: Miscellaneous (Other, Various) - see notes
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Richtkoppler 3035.01 - Antennenwerke Bad Blankenburg
Material Metal case
Shape Miscellaneous shapes - described under notes.
Notes

Richtkoppler für Band IV/V. Durchgangsdämpfung: 2 bzw. 10 dB; Koppeldämpfung: >8 dB.

Price in first year of sale 15.00 Mark
Mentioned in radio fernsehen elektronik 1979, H.12, S.778
Literature/Schematics (1) Sortimentskatalog Elektroakustik (DDR, 1984)

Model page created by Michael Mischke. See "Data change" for further contributors.
