Zimmerantenne 1187.505

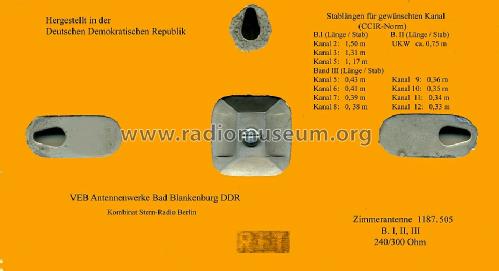

Zimmerantenne 1187.505; Antennenwerke Bad (ID = 650686) Antenna Zimmerantenne 1187.505; Antennenwerke Bad (ID = 650687) Antenna
Zimmerantenne 1187.505; Antennenwerke Bad (ID = 725829) Antenna
Use red slider bar for more.
Zimmerantenne 1187.505; Antennenwerke Bad (ID = 650686) Antenna
Antennenwerke Bad: Zimmerantenne 1187.505 [Antenna] ID = 650686 778x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Zimmerantenne 1187.505, Antennenwerke Bad Blankenburg /Thür., VEB; - vorm. Heliogen

Country:  Germany
Manufacturer / Brand:  Antennenwerke Bad Blankenburg /Thür., VEB; - vorm. Heliogen
Brand

VEB Antennenwerke Bad Blankenburg; Bad B.
Year: 1961 ? Category: Antenna (Aerial) or Coupler
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Zimmerantenne 1187.505 - Antennenwerke Bad Blankenburg
Material Various materials
Dimensions (WHD) 200 x 290 x 110 mm / 7.9 x 11.4 x 4.3 inch
Notes Für Bereiche Band I, II und III, 2 Teleskopstäbe aus Messing von 25 - 148 cm ausziehbar, schwenkbar. Standfuß Thermoplast, Wandaufhängung möglich. Anschluss Bandkabel 240 Ohm.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 39.85 M

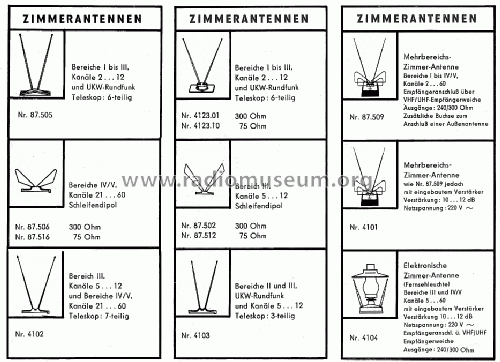

Mentioned in Firmenkatalog Antennenwerke Bad Blankenburg
Literature/Schematics (1) Branchenbuch für Elektro-Akustik (DDR, 1963)

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
