Super 8 3 gammes
Antena; Paris
- Country
- France
- Manufacturer / Brand
- Antena; Paris
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 240342
ebay.fr #203337646614 seller kaiizzer
Haut-Parleur
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Dry Batteries / 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

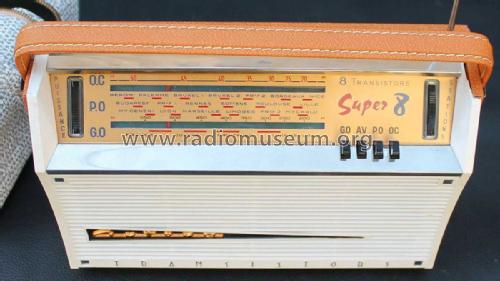

- Model: Super 8 [3 gammes] - Antena; Paris
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 250 x 175 x 60 mm / 9.8 x 6.9 x 2.4 inch
- Notes
-
Clavier 4 touches GO, AV, PO, OC. Cadre ferrite 20 cm. Prise antenne-voiture commutée par touche.
Coffret bois gainée, façade plastique.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Price in first year of sale
- 306.94 FRF
- Literature/Schematics (1)

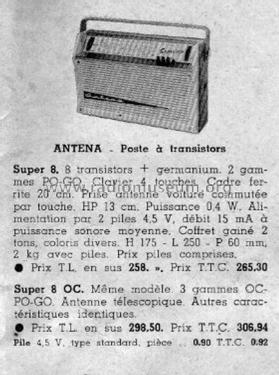

- Le Haut-Parleur
