SFT307

Information - Help
ID = 35629

Country:
France
Brand: COSEM; Saint-Egrève
Tube type:  Transistor   RF/IF-Stage
Identical to SFT307
Similar Tubes
Normally replaceable-slightly different:
  2G138 ; OC45 ; ГТ2307
Other base and data slightly different:
  AF121 ; AF126 ; AF200

Base Wires
Was used by Radio/TV-reception etc.
Filament Solid State
Description

PNP germanium alloy transistor intended as AF IF amplifier / AM broadcast mixer


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
6 x 10 x mm / 0.24 x 0.39 x inch
Weight 1 g / 0.04 oz
Literature -- Collector info (Sammler)   TVT 1979/80 ECA, Towers IVT

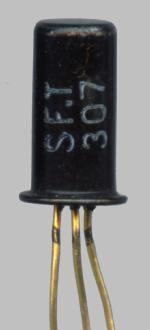

SFT307: Collection G.Duperray
Gérard Duperray


SFT307
Günther Stabe



Usage in Models 1= 1955?? ; 1= 1958?? ; 1= 1959?? ; 1= 1959? ; 3= 1960?? ; 1= 1960? ; 1= 1960 ; 2= 1961?? ; 4= 1961? ; 2= 1961 ; 2= 1962?? ; 2= 1962? ; 2= 1962 ; 1= 1963?? ; 1= 1963? ; 4= 1963 ; 2= 1964? ; 6= 1964 ; 2= 1965?? ; 3= 1965? ; 2= 1965 ; 4= 1966?? ; 2= 1966? ; 1= 1967? ; 1= 1967 ; 3= 1968?? ; 1= 1968 ; 1= 1969?? ; 1= 1970?? ; 1= 1970? ; 1= 1971 ; 2= 1975??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):62
