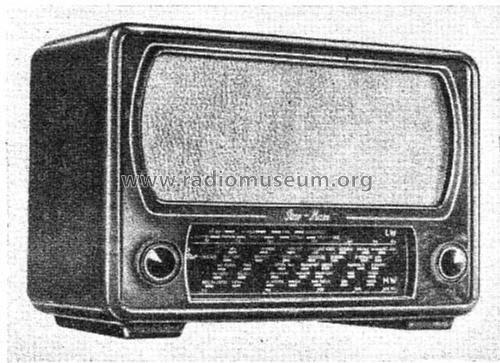

Star-Mars ; Apparatebau Backnang (ID = 1804014) Radio Star-Mars ; Apparatebau Backnang (ID = 23238) Radio

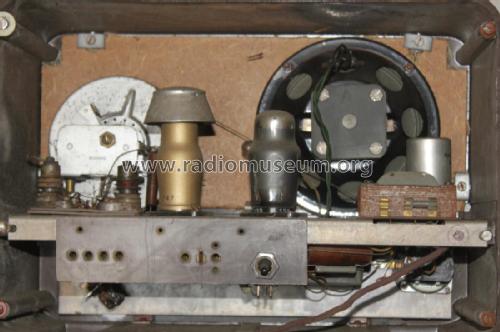

Star-Mars ; Apparatebau Backnang (ID = 1804015) Radio Star-Mars ; Apparatebau Backnang (ID = 1804017) Radio
Use red slider bar for more.
Star-Mars ; Apparatebau Backnang (ID = 1804014) Radio
Apparatebau Backnang: Star-Mars [Radio] ID = 1804014 1300x1043
Select picture or schematic to display from thumbnails on the right and click for download.
For model Star-Mars Wechselstrom, Apparatebau Backnang GmbH, Star-Radio, Backnang-Neuschöntal (Württ.)
Country:  Germany
Manufacturer / Brand:  Apparatebau Backnang GmbH, Star-Radio, Backnang-Neuschöntal (Württ.)
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: EF6 EL8
Semiconductors (the count is only for transistors) Selen
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Power type and voltage Alternating Current supply (AC) / 120; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Model: Star-Mars [Wechselstrom] - Apparatebau Backnang GmbH,
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 310 x 225 x 160 mm / 12.2 x 8.9 x 6.3 inch

2-Knopfbedienung durch kombinierte Lautstärke- und Rückkopplungsregelung; Tonblende.

Siehe auch Apparatebau Backnang Star Mars für Allstrom-Betrieb.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 88.00 DM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 2, Ernst Erb
Mentioned in Funkschau (5015)
