La Fauvette type 2

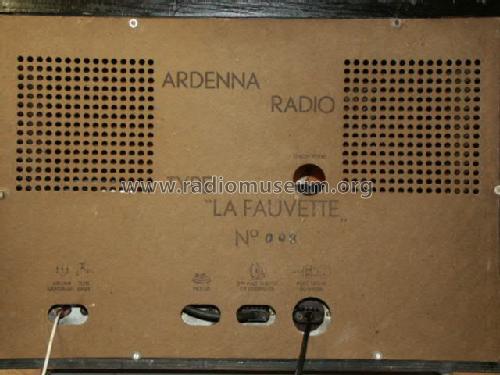

La Fauvette type 2; Ardenna-Radio; (ID = 728419) Radio La Fauvette type 2; Ardenna-Radio; (ID = 728420) Radio
Use red slider bar for more.
La Fauvette type 2; Ardenna-Radio; (ID = 728419) Radio
Ardenna-Radio;: La Fauvette type 2 [Radio] ID = 728419 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model La Fauvette type 2, Ardenna-Radio; Poupehan

Country:  Belgium
Manufacturer / Brand:  Ardenna-Radio; Poupehan
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH4 EF9 EBC3 EL3N EM4 AZ1
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 95; 110; 125; 140; 205; 220; 235; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: La Fauvette type 2 - Ardenna-Radio; Poupehan
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 550 x 380 x 280 mm / 21.7 x 15 x 11 inch
Notes This radio has the chassis of a "Le Rossignol" - same maker. Due to later exchange or made "à la demande" from the beginning - who is to say? So i called this the type2.
Price in first year of sale 5'450.00 Bfr
Source of data -- Original prospect or advert

Model page created by Dirk Bladt. See "Data change" for further contributors.
