• Country
• France

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: France (INCONNU)

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 232335

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM4 GZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch

• Material

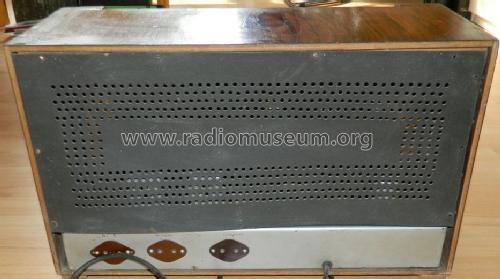

• Wooden case

• from Radiomuseum.org

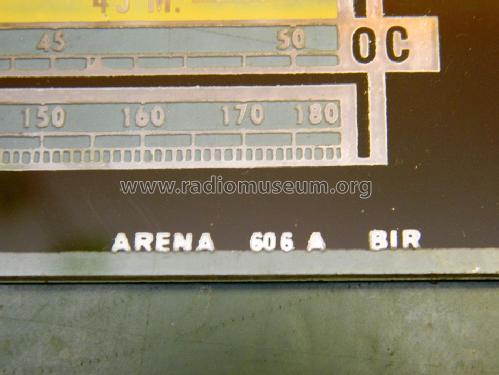

• Model: Inconnu - Unknown 37 Cadran Arena 606 A - Unknown - CUSTOM BUILT: France

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 310 x 250 mm / 21.7 x 12.2 x 9.8 inch

• Notes

• La lampe GZ41 est lancée sur le marché de masse depuis 1951.

• Net weight (2.2 lb = 1 kg)
• 10.7 kg / 23 lb 9.1 oz (23.568 lb)

• Author
• Model page created by Klaus Gordziel. See "Data change" for further contributors.

• Other Models

• Here you find 268 models, 252 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
