T2500H; Arena, Horsens (ID = 2229878) Radio

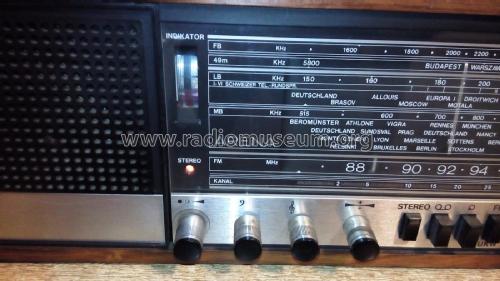

Arena, Horsens: T2500H [Radio] ID = 2229878 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model T2500H, Arena, Horsens
Country:  Denmark
Manufacturer / Brand:  Arena, Horsens
alternative name
Hede Nielsen's Fabrikker A/S
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 38:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Power type and voltage Alternating Current supply (AC)
Loudspeaker 2 Loudspeakers
Power out 30 W (unknown quality)
from Model: T2500H - Arena, Horsens
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 146 x 210 mm / 17.7 x 5.7 x 8.3 inch
Notes Stereo Receiver in Modultechnik. 15 Watt Sinus per Kanal an 4 Ohm.
5 vorwählbare FM-Stationen (Premat).
Siehe auch Ingelen a href="" target="_blank">T2500H.
Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Price in first year of sale 1'098.00 DM
Mentioned in High Fidelity Jahrbuch 1967/68 Seite 151

Model page created by Franz Scharner. See "Data change" for further contributors.

All listed radios etc. from Arena, Horsens
Here you find 35 models, 30 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
