• Country
• Denmark

• Manufacturer / Brand
• Arena, Hede Nielsens Fabriker; Horsens

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84939

• • alternative name: Hede Nielsen's Fabrikker A/S

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

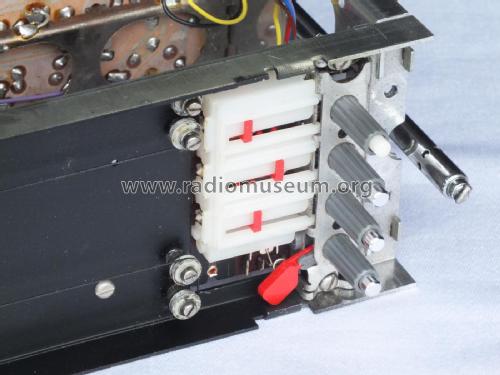

• Model: TA12 - Arena, Hede Nielsens Fabriker;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 195 x 95 mm / 12.6 x 7.7 x 3.7 inch

• Notes
• Einzelne, abgeschirmte Module auf 9-poligen Keramiksockeln. Sechs - vom Hersteller "Transmodul" genannte - Bausteine für den FM-Tuner; AM-Mischung; AM-FM ZF und AVR; AM-Det./FM ZF; FM Treib.-Det.-Begrenzer.

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Hans Fischer. See "Data change" for further contributors.
