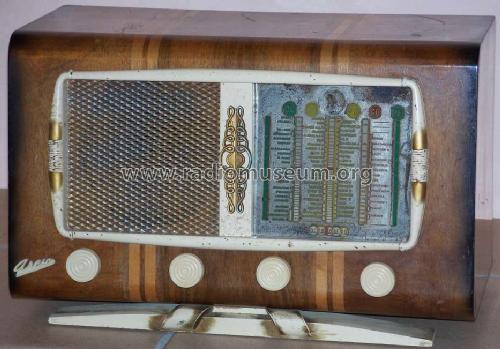

Areso voir aussi Ast: Inconnu - Unknown 4 [Radio] ID = 1324497 933x653
Select picture or schematic to display from thumbnails on the right and click for download.
For model Inconnu - Unknown 4, Areso (voir aussi Astérion); Saint-Ouen, La Plaine-Saint-Denis

Country:  France
Manufacturer / Brand:  Areso (voir aussi Astérion); Saint-Ouen, La Plaine-Saint-Denis
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EF41 EL41 GZ40
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Inconnu - Unknown 4 - Areso voir aussi Astérion;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 270 x 210 mm / 16.9 x 10.6 x 8.3 inch
Notes

Cadran / dial scale: "AP.293"

Net weight (2.2 lb = 1 kg) 7.9 kg / 17 lb 6.4 oz (17.401 lb)

Model page created by Roberto Gabba. See "Data change" for further contributors.
