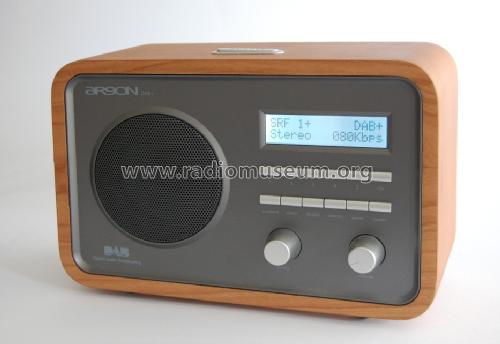

Argon DAB2 V3+

Argon Audio; Aarhus

Data
Forum
Pictures
Collections

  • Year
  • 2011 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 242839

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • DSP, Digital Signal Processor
  • Wave bands
  • DAB and FM, perhaps with Streaming [DABFM]
  • Power type and voltage
  • Powered by external power supply or a main unit. / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.6 cm = 3 inch
  • Power out
  • 4 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Argon DAB2 V3+ - Argon Audio; Aarhus
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 205 x 132 x 88 mm / 8.1 x 5.2 x 3.5 inch
  • Notes

  • Argon DAB2 V3+ ist ein kombinierter UKW- und DAB+ Empfänger.

    UKW: 87,5 – 108 MHz
    DAB, DAB+: Band III (174-240 MHz); L-Band (1452.96 – 1490,62 MHz)

    Der Empfänger ist mit dem Gyrosignal Chipset (Gyro-1128),
    ein DAB+/DAB/FM/RDS Modul, ausgerüstet.



  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)
  • Price in first year of sale
  • 199.00 EUR
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Peter Lehmann. See "Data change" for further contributors.
