A55

A55; Ariane; Paris (ID = 372361) Radio A55; Ariane; Paris (ID = 372362) Radio

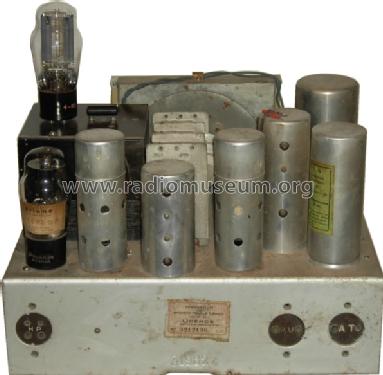

A55; Ariane; Paris (ID = 905999) Radio A55; Ariane; Paris (ID = 906001) Radio
A55; Ariane; Paris (ID = 906002) Radio A55; Ariane; Paris (ID = 906003) Radio

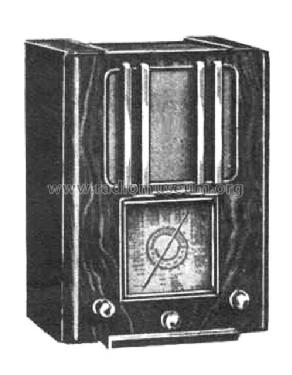

A55; Ariane; Paris (ID = 906005) Radio A55; Ariane; Paris (ID = 1670758) Radio
Use red slider bar for more.
A55; Ariane; Paris (ID = 372361) Radio
Ariane; Paris: A55 [Radio] ID = 372361 502x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model A55, Ariane; Paris

Country:  France
Manufacturer / Brand:  Ariane; Paris
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 6B7 42 80
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: A55 - Ariane; Paris
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 360 x 467 x 275 mm / 14.2 x 18.4 x 10.8 inch
Notes

3 gammes d'ondes: OC 18 - 51 m, PO 200 - 560 m, GO 1000 - 2000 m. Anti-fading. Prises pick-up et HP supplémentaire.

Ébénisterie noyer verni et metal chromé.

Net weight (2.2 lb = 1 kg) 12.4 kg / 27 lb 5 oz (27.313 lb)
Price in first year of sale 1'450.00 FRF
Mentioned in -- Original prospect or advert (Gamme 1936)
Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref 23010)

Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.



All listed radios etc. from Ariane; Paris
Here you find 101 models, 80 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
